LearnX LMS - Database Schema¶
1. Overview¶
This schema defines the core data structure for LearnX LMS, including Users, Roles, Courses, Modules, and Enrollments. It ensures relational integrity and supports the platform's main functionalities: authentication, course creation, media management, and enrollment tracking.

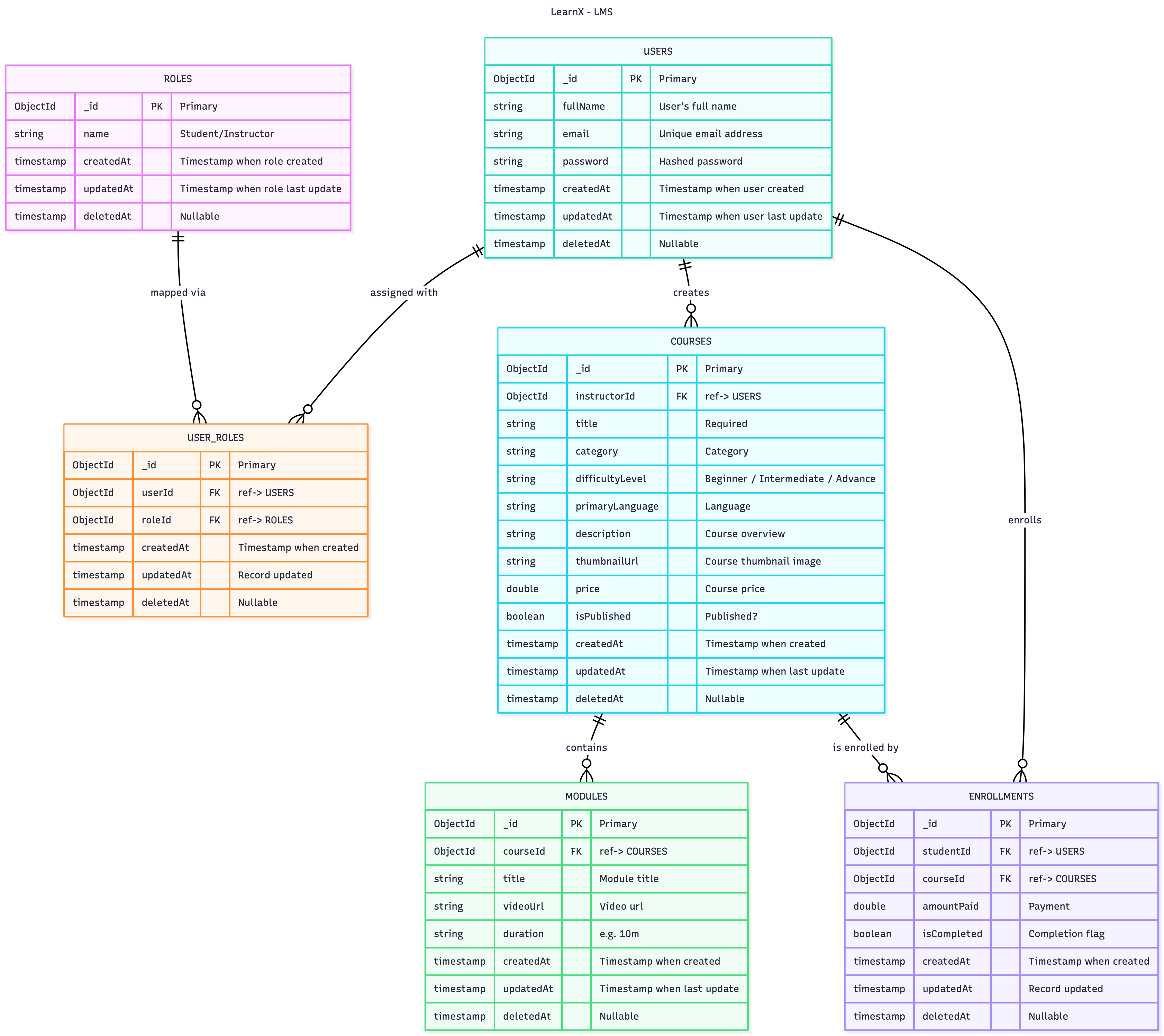

2. ER Diagram¶
3. Collection Details¶
| Collection | Fields | Notes / Purpose |
|---|---|---|
| USERS | _id, fullName, email, password, timestamps |
User accounts with authentication |
| ROLES | _id, name, timestamps |
User roles (Instructor/Student) |
| USER_ROLES | _id, userId, roleId, timestamps |
Links users with roles |
| COURSES | _id, instructorId, title, category, difficultyLevel, description, thumbnailUrl, price, isPublished, timestamps |
Course details with media |
| MODULES | _id, courseId, title, videoUrl, duration, order, timestamps |
Course lessons with videos |
| ENROLLMENTS | _id, studentId, courseId, amountPaid, isCompleted, timestamps |
Student enrollments with progress |
4. Relationships¶
- Users ↔ Roles: Many-to-many via
USER_ROLES - Instructor → Courses: One-to-many
- Course → Modules: One-to-many
- Students ↔ Courses: Many-to-many via
ENROLLMENTS
